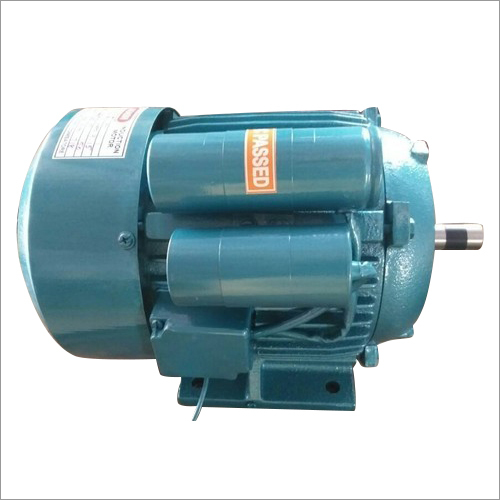

electric Motor - 1HP

electric Motor - 1HP Specification

Bearing Type
Ball Bearing

Sealed Type
Drip Proof

Current Type
AC

Horse Power
1 HP

Features
Low maintenance, robust construction, efficient performance

Noise Level
Less than 65 dB

Motor Type
Induction Motor

Ambient Temperature
-15C to 40C

Power Rating
0.75 kW

Torque
7.5 Nm

Pressure
Atmospheric

Standard
IS 325, IEC 60034

Cooling Method
Self Ventilated

Poles Number
4

Rated Voltage
220 V

Voltage
220-240 V

Rated Frequency
50 Hz

Efficacy
High Efficiency

Product Type
Electric Motor

Output Power
1 HP

Frequency (MHz)
50/60

Protect Feature
Overload Protection

Phase
Single Phase

Speed
1440 RPM

Starting Type
Electric Start

Power
0.75 kW

Color
Blue

Dimension (L*W*H)
Approx. 350 x 200 x 250 mm

Weight
Approx. 18 kg

Warranty
Yes

Shaft Diameter
24 mm

Mounting Type
Foot Mounted

IP Rating
ip44

Duty Type
S1 (Continuous Duty)

Application
Water pumps, compressors, general industrial use

Rotation
Clockwise/Anticlockwise

Service Factor
1.15

Enclosure Type
Totally Enclosed Fan Cooled (TEFC)

Insulation Class
Class B

Terminal Box Position
Top

Frame Size
100L

electric Motor - 1HP Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
3 Pieces Per Day

Delivery Time
3 Days

Main Domestic Market
Karnataka, Kerala, Andhra Pradesh, Tamil Nadu, Telangana, Pondicherry

About electric Motor - 1HP

Grab the chance to own this sterling 1HP electric motoryour pivotal solution for water pumps, compressors, and a wide range of industrial applications. With a robust TEFC enclosure and high efficiency, this induction motor is built for continuous S1 duty and features a bargain service factor of 1.15 with overload protection. The outstanding IP44-rated drip-proof design and ball bearing system assure reliability under atmospheric pressure. Order now to experience low maintenance, high performance, and a warranty-backed motor, available from a leading Indian manufacturer and supplier.

Versatile 1HP Electric Motor for Multiple Uses

This electric motor is masterfully engineered for reliability and efficiency. Its primary usage includes powering water pumps, compressors, and various industrial machines. With a sturdy totally enclosed fan-cooled (TEFC) build, it ensures long-term endurance and minimal maintenance. The AC induction motors robust ball bearings and superior insulation further enhance durability, making it ideal for heavy-duty, continuous operation in dynamic industrial environments.

Convenient Payment, Quick Dispatch, and Nationwide Reach

Benefit from a sale price tailored for value and efficiency. Flexible payment terms ease the ordering process, and once your transaction is complete, your electric motor is promptly dispatched. Our supply ability accommodates both small and large orders, ensuring timely handover no matter the scale. With a strong presence across India, our main domestic market promises outstanding support and product accessibility.

FAQs of electric Motor - 1HP:

Q: How does the overload protection feature benefit the electric motor?

A: The built-in overload protection ensures the motor remains safeguarded against excessive current, preventing overheating and prolonging the units lifespan.

Q: What is the primary application of this 1HP electric motor?

A: This electric motor is primarily used in water pumps, compressors, and general industrial machinery, providing reliable continuous service under demanding conditions.

Q: When can I expect my order to be dispatched after purchase?

A: Orders are typically processed and dispatched promptly after payment is completed, ensuring you receive your product without unnecessary delay.

Q: Where is the motor manufactured and supplied from?

A: The 1HP electric motor is manufactured and supplied in India, meeting high standards such as IS 325 and IEC 60034.

Q: What are the key features contributing to the motors low maintenance?

A: Key features include robust construction, self-ventilated cooling, and high-quality ball bearings, all designed to reduce maintenance needs and enhance operational reliability.

Q: How does the motors dual rotation capability enhance its usage?

A: With both clockwise and anticlockwise rotation options, this motor offers versatile installation and application flexibility to suit varied industrial requirements.
