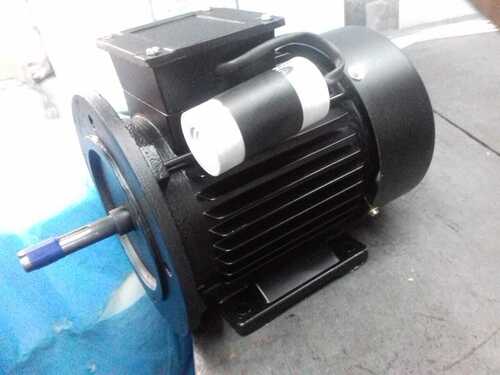

      Foot cum Flange motor - 0.5 HP

      Foot cum Flange motor - 0.5 HP
      Foot cum Flange motor - 0.5 HP

      Foot cum Flange motor - 0.5 HP Specification

      • Rated Frequency
      • 50 Hz
      • Ambient Temperature
      • Up to 40C
      • Bearing Type
      • Double Ball Bearing
      • Rated Voltage
      • 230 V
      • Torque
      • 2.45 Nm
      • Motor Type
      • Foot cum Flange Mounted AC Induction Motor
      • Horse Power
      • 0.5 HP
      • Standard
      • IS:12615, IEC
      • Sealed Type
      • Totally Enclosed Fan Cooled (TEFC)
      • Current Type
      • AC
      • Power Rating
      • 0.37 kW
      • Starting Type
      • Capacitor Start
      • Features
      • Robust Construction, Energy Efficient, Low Maintenance
      • Efficacy
      • High Efficiency
      • Noise Level
      • Low
      • Poles Number
      • 4
      • Cooling Method
      • Air Cooled
      • Voltage
      • 230 V
      • Product Type
      • Electric Motor
      • Output Power
      • 0.5 HP
      • Frequency (MHz)
      • 50 Hz
      • Protect Feature
      • Thermal overload protection
      • Phase
      • Single Phase
      • Speed
      • 1440 RPM
      • Power
      • 0.37 kW
      • Color
      • Black
      • Dimension (L*W*H)
      • 290mm x 200mm x 230mm
      • Weight
      • Approx. 15 kg
      • Warranty
      • Yes
      • Shaft Diameter
      • 19 mm
      • Mounting Type
      • Foot cum Flange
      • IP Rating
      • IP55
      • Rotor Type
      • Squirrel Cage
      • Running Capacitor
      • 12 MFD
      • Duty Type
      • S1 Continuous
      • Maximum Ambient Temperature
      • 45C
      • Service Factor
      • 1.15
      • Cable Entry
      • PG9
      • Insulation Class
      • Class F
      • Bearings Brand
      • SKF/ABC
      • Temperature Rise
      • 80C max
      • Frequency Tolerance
      • 5%
      • Application
      • Industrial Machinery, Pumps, Compressors
      • Material
      • Aluminium/CI Housing
      • Frame Size
      • 80
      • Vibration Level
      • Low (As per IS standards)
      • Starting Capacitor
      • 36 MFD
      • Efficiency Class
      • IE2
      • Direction of Rotation
      • Clockwise/Counterclockwise
      • Finish
      • Powder Coated
      • Power Factor
      • 0.85


      Foot cum Flange motor - 0.5 HP Trade Information

      • Minimum Order Quantity
      • 1 Unit
      • Delivery Time
      • 7 Days
      • Main Domestic Market
      • Karnataka, Kerala, Andhra Pradesh, Tamil Nadu, Telangana, Pondicherry


      About Foot cum Flange motor - 0.5 HP



      Experience supreme industrial performance with our Elite 0.5 HP Foot cum Flange Motor, delivering world-class efficiency for machinery, pumps, and compressors. Advance Purchase guarantees instant savings and triumphant operational reliability. Built to IS:12615 and IEC standards, this IE2 efficiency motor features a robust powder-coated finish, premium SKF/ABC bearings, and totally enclosed fan cooling (TEFC) for longevity. Benefit from high energy efficiency, low vibration, and thermal overload protection-ideal for sustained S1 duty. With both clockwise and counterclockwise rotation, this black powerhouse is engineered for supreme robustness and low maintenance in demanding environments.

      Advanced Features & Versatile Applications

      Our Foot cum Flange Motor - 0.5 HP excels with robust aluminium/CI housing, high service factor, and premium double ball bearings. Its low-vibration and low-noise design enhance industrial environments, while the thermal overload protection ensures long-term safety. Suitable for use in heavy-duty industrial machinery, compressors, conveyor systems, and various pumps, its dual mounting capability and clockwise/counterclockwise functionality make it adaptable for a range of demanding uses.


      Sample Policy & Dispatch Information

      We prioritize efficient dispatching for our valued clients. Sample units of the Foot cum Flange Motor - 0.5 HP are available, allowing businesses to evaluate market value before bulk orders. Typically dispatched from our designated FOB port, each sample is handled promptly to ensure you swiftly receive superior quality exemplifying our commitment. Assess the motor's triumphant performance and reliability firsthand through our structured sample policy designed for both domestic and international markets.


      FAQ's of Foot cum Flange motor - 0.5 HP:


      Q: How can I benefit from using the Foot cum Flange Motor - 0.5 HP in my industrial setup?

      A: This motor provides high efficiency (IE2 Class), robust performance, and low maintenance, making it ideal for continuous-duty operations in industrial machinery, pumps, and compressors.

      Q: What is the process for obtaining a sample of this motor?

      A: You may request a sample, which will be efficiently dispatched from our designated FOB port. This allows you to evaluate its performance and market value before making a larger purchase.

      Q: Where is the Foot cum Flange Motor - 0.5 HP commonly used?

      A: This world-class motor is suitable for use in industrial manufacturing units, pump installations, compressors, and conveyor systems, thanks to its reliable performance and flexibility.

      Q: What are the main features of this Elite motor?

      A: Key features include robust aluminium/CI housing, low vibration, thermal overload protection, high service factor, IP55 sealing, and IS/IEC standard compliance-providing lasting durability and energy efficiency.

      Q: How does the advance purchase benefit customers?

      A: Advance purchase facilitates instant savings and guarantees timely dispatch, securing your supply chain with supreme quality motors ready for crucial projects.
